Anson Mark 1 to 11

Home Page | Return to WW2 Allied Aircraft

Fig 1. Instrument Panel and port side of cockpit. Fig 2. Cockpit - starboard side. Fig 3. General Cabin View.

Number References

Anson mark I & X & XI

Fig 1. Instrument Panel and port side of cockpit.

1. Suction Gauge.
2. Vacuum System Change-over Cock.
3. Identification Lights switch-box.
4. Pressure Head heater switch (above instrument flying panel on some aircraft).
5. IFF master switch.
6. Pilot's bomb firing switch.
7. IFF emergency switch.
8. Engine Speed Indicator (twin).
9. Undercarriage Warning Light.
10. Instrument Flying Panel.
11. Fuel contents selector switch (Beside fuel cock controls on some aircraft).
12. Fuel contents gauge.
13. Boost gauges (two).
15. Oil pressure gauges (two).
16. Oil Temperature gauges (two).
17. Flap indicators.
18. Recognition lights switch.
19. Slow running cut-out.
20. Undercarriage mechanical indicator.
21. Friction device for throttle and mixture levers.
22. Mixture lever.
23. Throttle levers (two).
24. Flaps control lever.
25. Landing lamps switch.
26. Compass.
27. Gun Firing push button.
28. Brakes and supply pressure gauge.

Fig 2. Cockpit - starboard side.

29. Wheel brake control.
30. Elevator Trimming tabs.
31. Bomb fusing control lever.
32. Air temperature gauges.
33. Watch Holder.
34. Bomb control panel.
35. Fuel cock controls (four).
36. 2nd Pilot's Intercommunication socket.
37. 2nd Pilot's seat.
38. Bomb door crank control.

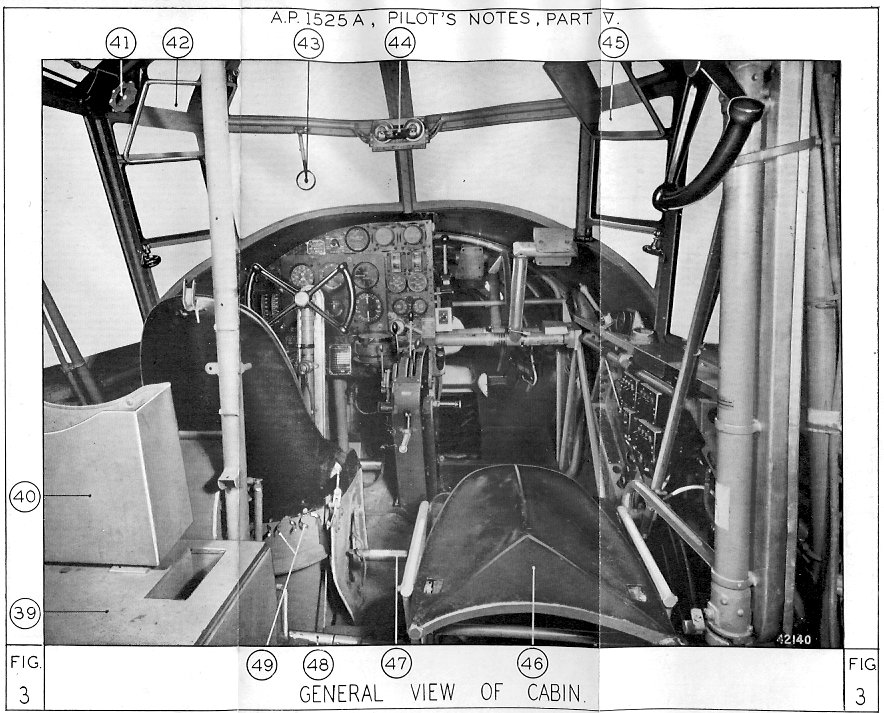

Fig 3. General Cabin View.

39. Navigators Table.
40. Stowage for computer, etc.
41. Rudder trimming tab control.
42. Port direct vision window.
43. Ring sight for Browning gun.
44. Main Magneto Switches.
45. Starboard Direct vision window.
46. 2nd Pilots seat (folded).
47. Undercarriage control.
48. Flaps hydraulic hand-pump Control.
49. Signal pistol cartridges stowage.
