Anson Mark 20, 21 & 22

Home Page | Return to Post WW2 Allied Aircraft

Fig 1. Instrument Panel.	Fig 2. Cockpit - Left hand side.	Fig 3. Cockpit - right hand side.

Number References

Anson mark XXII

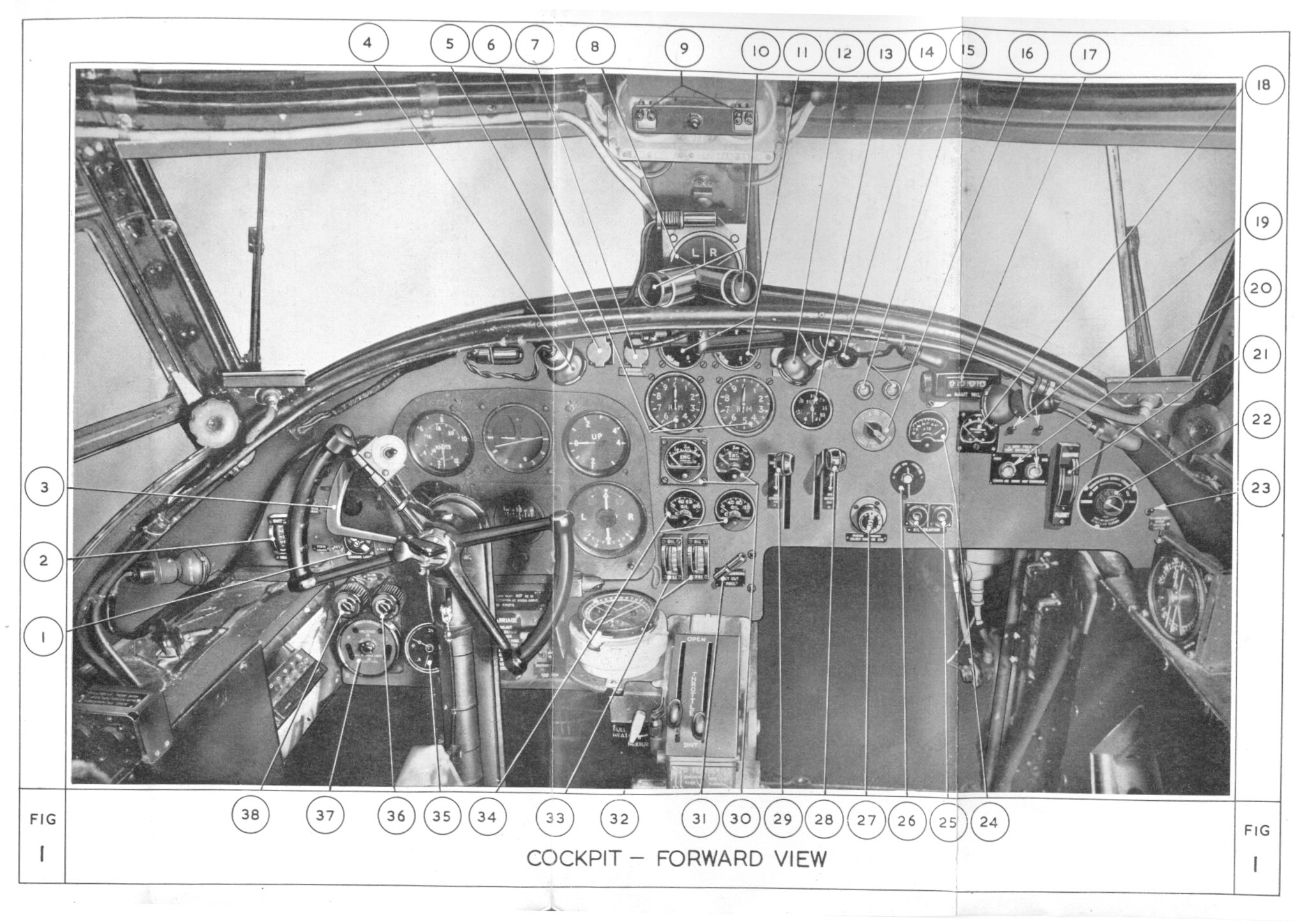

Fig 1. Instrument Panel.

1. Landing Lamp Control.
2. Suction Gauge.
3. Wheel Brake controls.
4. U/V Flood light.
5. No 1 engine starter pushbutton.
6. RPM indicators (two).
7. No 1 engine feathering push button.
8. D.F visual indicator.
9. Ignition Switches.
10. Oil dilution switch.
11. Cockpit Ventilators.
12. U/V Floodlight.
13. Fuel contents Gauge.
15. Fuel Pressure warning lights (Two).
16. Fuel contents gauge selector switch.
17. Air Mileage indicator.
18. Voltmeter.
19. Generator field switches (two) .
20. Generator Power failure warning lights (two).
21. Ground / flight switch.
22. windscreen wipers speed controller.
23. windscreen wipers master switch.
24. Outside air temperature gauge.
25. Oil dilution push buttons (two).
26. Priming selecting cock.
27. Fuel Priming Pump.
28. Air intake control.

29. Air Filter control.
30. Engine temperature gauges.
31. Slow running cut out control.
32. Cockpit heat control.
33. Oil Pressure gauge.
34. Oil temperature gauge.
35. Air Temperature and brakes triple pressure gauge.
36. U/V floodlight control.
37. Undercarriage position indicator.
38. Red floodlight control.

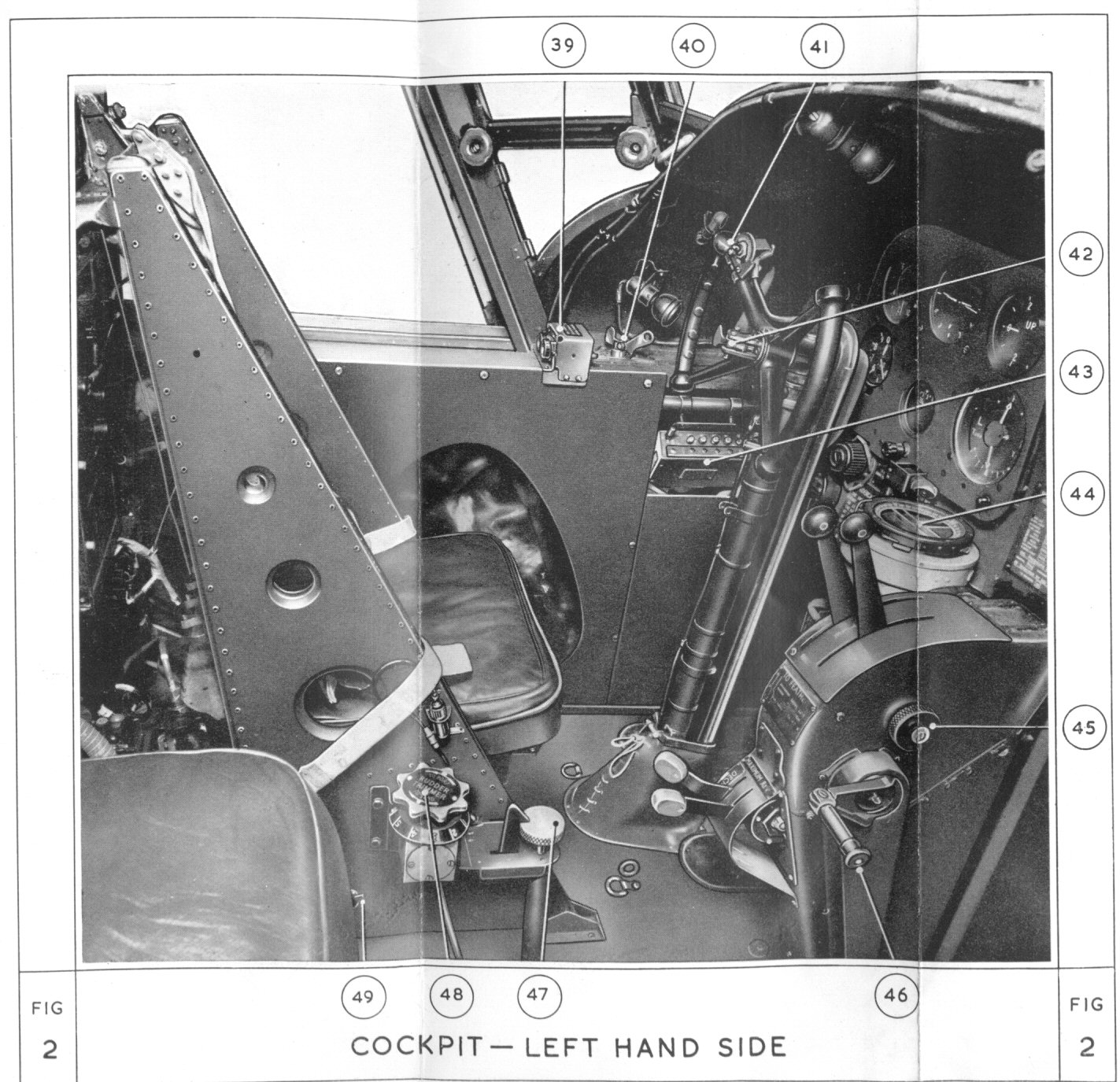

Figure 2. Cockpit left hand side.

39. Intercom Push button.
40. Vacuum system change over cock.

41. Pilots transmit button.
42. Brakes parking catch.

43. Radio controller.
44. Compass.

45. Throttle friction damper.

46. Elevator trim-tab control.

47. Undercarriage selector control.

48. Rudder trim tab control.

49. Flap selector control.

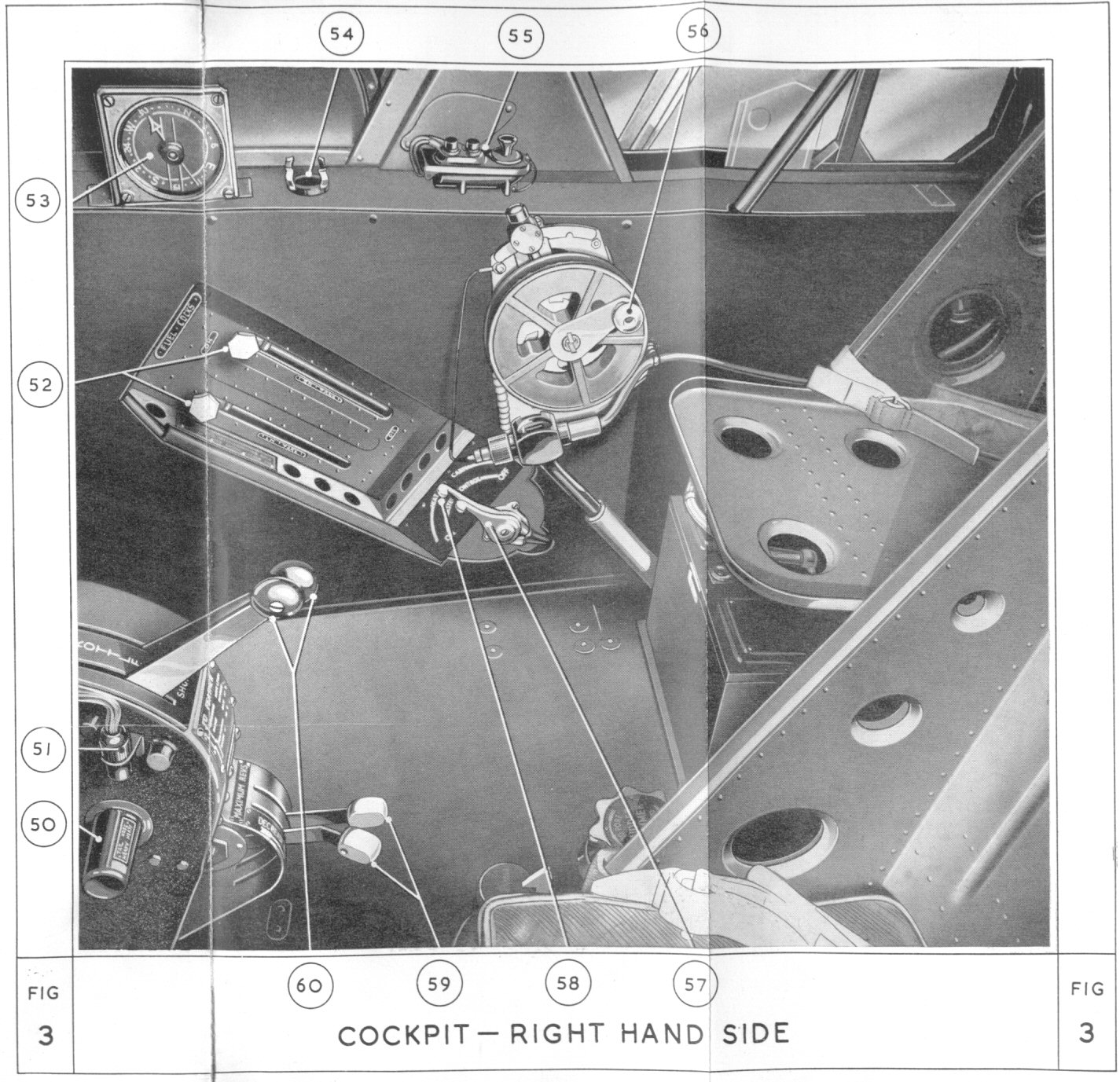

Figure 3. Cockpit right hand side.

50. Elevator trimming tab indicator
51. Elevator trim indictor.
52. Fuel cocks.
53. ATMC repeater.
54. watch holder (if fitted).

55. Morsing control.

56. Trailing serial control.

57. Heating master switch.

58. Cabin heating control.

59. R.P.M Control lever.

60. Throttle Levers (two)
