Barracuda Mk1 & 2

Home Page | Return to WW2 Allied Aircraft

Fig 1 - Main Instrument Panel	Fig 2 - Cockpit Port side	Fig 3 - Cockpit starboard side

Number References

Barracuda Mk2 & 3

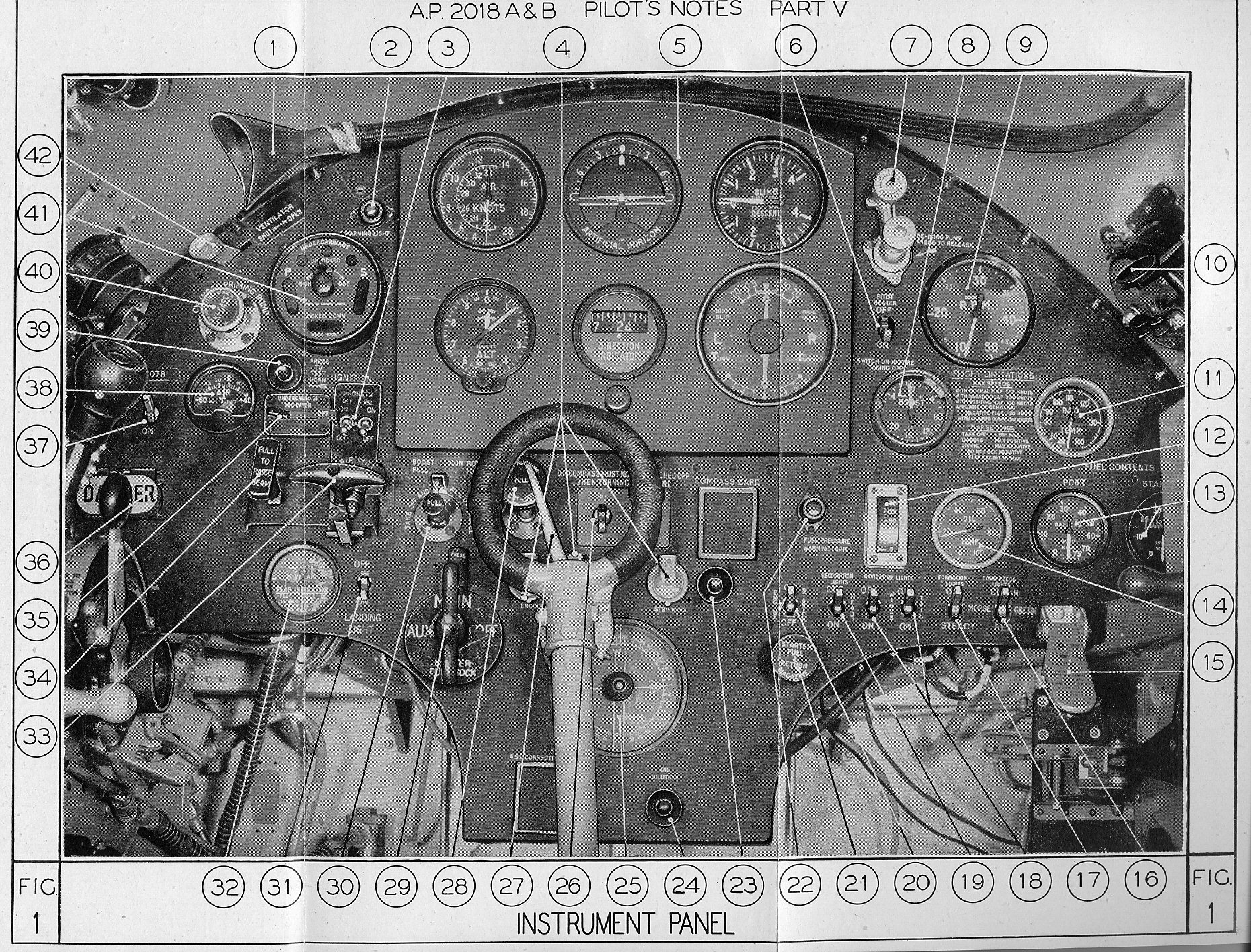

Fig 1. Instrument Panel.

1. Pilots Speaking Tube.
2. Undercarriage warning light.
3. Ignition switches.
4. Fire extinguisher pushbuttons (three).
5. Instrument Flying panel.
6. Pressure head heater switches.
7. Pilots windscreen de-icing pump.
8. Boost gauge.
9. Engine speed indicator.
10. Identification & recognition lamps switchbox.
11. Radiator temperature gauge.
12. Oil pressure gauge.
13. Fuel contents gauge.
14. Oil temperature gauge.
15. Baulking lever for lowering undercarriage control lever before using emergency system.
16. Downward recognition lights colour selecting switch.
17. Formation lights switch.
18. Navigation lights switches.
19. Resin lights switches.
20. Engine starter master witch.
21. starter re-loading control.
22. Fuel pressure warning light.
23. Starter push button.
24. Oil dilution pushbutton.
25. D.R. compass.
26. D.R compass switches.
27. Brake lever.
28. Slow running cut-out control.
29. Fuel cock control.
30. Boost control cut-out.
31. Landing lamp switch.
32. Flaps position indicator.
33. Air intake heat control.
34. Landing lamp dipping lever.
35. Undercarriage indicator switch.
36. I.F.F destruction switches.
37. I.F.F master switch.
38. Air temperature gauge.
39. Undercarriage warning horn test switch.
40. Cylinder priming pump.
41. Undercarriage and deck hook indicator.
42. Ventilator control.

Fig 2. Cockpit - Port side.

43. Travelling lamp master switch.
44. Travelling lamp dimmer switch.
45. Avoiding action control.
46. Ships speed control.
47. Dimmer switch for item 48.
48. Instrument panel floodlight.
49. Radio change over switch.
50. Radio R1147 tuning control.
51. Radio R1147 volume control.
52. Torpedo or bomb release button.
53. Throttle lever.
54. Propeller speed control lever.
55. Priming pump hand cock.
56. Friction adjuster.
57. Brake pressure gauge.
58. Undercarriage control lever.
59. Flap control lever.
60. Deck hook lever.
61. Elevator trim control.
62. Rudder trimmer control.
63. Location for Auto controls (when fitted).
64. Auto controls master switch (when fitted).
65. Auto controls pressure gauge (when fitted).
66. Cockpit lamp and dimmer switch

Fig 3. Cockpit - Starboard side.

67. Bomb containers jettison switch.
68. Nose and tail fusing switch for bombs.
69. Radiator shutter control.
70. Radiator shutter indicator.
71. Instrument floodlight dimmer switch.
72. 16 point bomb selector switch.
73. Navigation lights dimmer switch.
74. Cockpit lamp and dimmer switch.
75. Automatic Sixteen-point distributor.
76. Pilot's sanitary container.
77. Pilots seat adjusting lever.
78. Pilots seat.
79. Pilots Sutton harness release lever.
80. Stowage for signal pistol mounting blanking cap.
81. Signal pistol mounting with blanking cap in place.
82. Cabin heating control.
83. Starboard rudder pedal.
84. Pilots map case.
85. Emergency undercarriage mechanical lever.
