Barracuda Mk2 & 3

Home Page | Return to WW2 Allied Aircraft

Fig 1 - Main Instrument Panel Fig 2 - Cockpit Port side Fig 3 - Cockpit starboard side

Number References

Barracuda Mk2 & 3

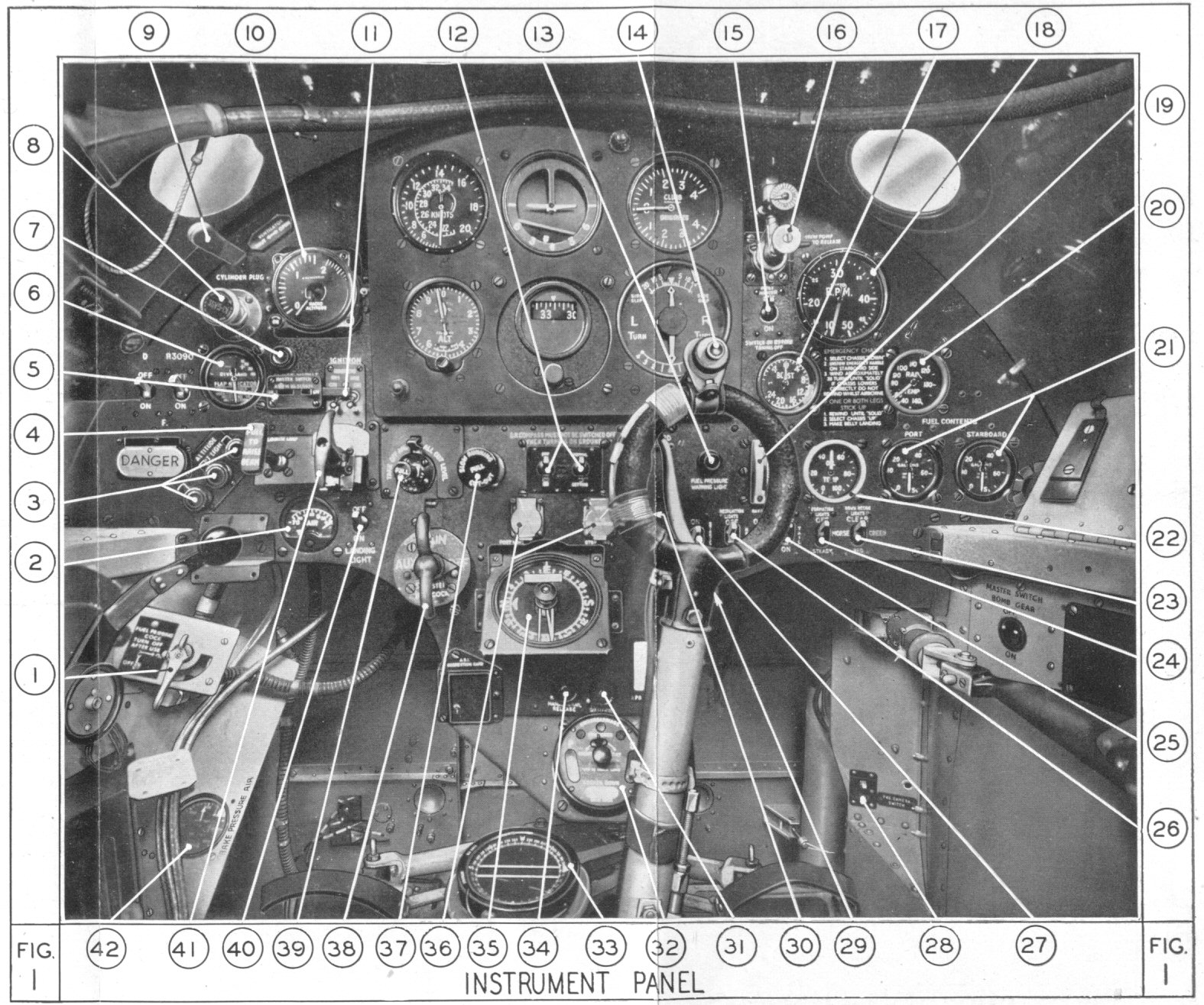

Fig 1. Instrument Panel.

1. Priming Cock.
2. Air Temperature Gauge.
3. Radio Altimeter indictor light.
4. Landing Lamp Control.
5. Undercarriage Indicator Switch.
6. Flap position Indicator.
7. Undercarriage warning light.
8. Cylinder priming pump.
9. Ventilator Control.
10. Radio Altimeter.
11. Ignition Switches.
12. D.R. Compass switches.
13. Fuel pressure warning light.

14. Bomb & Torpedo firing button.
15. Pressure-head heater switch.
16. Windscreen de-icing pump.
17. Boost Gauge.
18. Engine Speed Indicator.
19. Oil Pressure gauge.
20. Radiator temperature gauge.
21. Fuel contents gauge.
22. Oil Temperature Gauge.
23. Downward recognition light selector switch.
24. Formation Lights switches.
25. Navigation lamps switches.
26. Recognition lamps switches.
27. Engine starter switch.
28. F.46 Camera switch.
29. Starter re-loading control (Hidden).
30. Starter & Booster coil pushbutton (Hidden).
31. Oil distribution pushbutton.
32. Undercarriage indicator.
33. P.8 compass.
34. Handling Rails release.
35. D.R. Compass.
36. Fire-extinguisher pushbuttons.
37. Slow Running cut-out controls.
38. Fuel Cock control.
39. Automatic boost control cut-out.
40. Landing light switch.
41. Air-intake heat control.
42. Brake pressure gauge.

Fig 2. Cockpit - Port side.

43. Cockpit lights switchbox.
44. Ship's speed control.
45. Pilot's speaking tube.
46. Rocket firing push button.
47. Throttle lever.
48. Propeller speed control lever.
49. Friction adjuster.
50. Undercarriage control lever.
51. Flaps control lever.
52. Deck hook lever.
53. Elevator trimming tab control.
54. Rudder trimming tab control.

Fig 3. Cockpit - Starboard side.

55. Bomb Gear .
56. Identification and recognition lights switchbox.
57. Bomb Containers Jettison switch.
58. Head rest release.
59. Bomb fusing switches.
60. Torpedo switches.
61. Oxygen regulator light dimmer switch.
62. Oxygen regulator.
63. Sixteen-point distributor.
64. Navigation lights dimmer switch.
65. Seat Adjusting lever.
66. Radiator shutter indicator.
67. Signal Pistol.
68. Radiator shutter control.
69. Radio Altimeter limit switch.
70. Undercarriage emergency gear control (handle stowed in clip).
