Chipmunk T10

Home Page | Return to Post WW2 Allied Aircraft

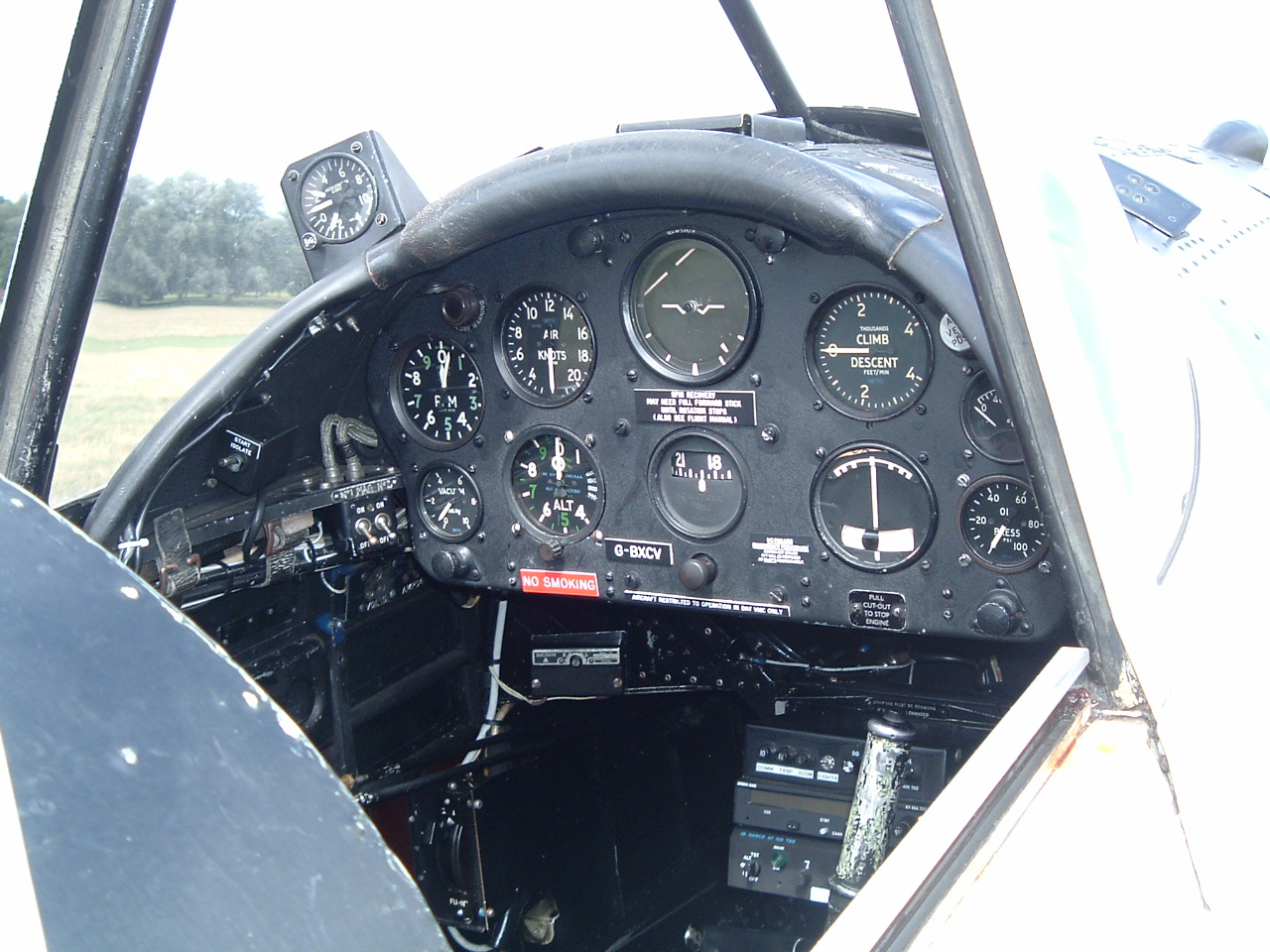

Fig 1. Front cockpit - forward view	Fig 2. Rear Cockpit - Port view	Fig 3. Rear Cockpit - starboard  view	Font Cockpit Of Chipmunk G-BXCV

Number References

Chipmunk T10.

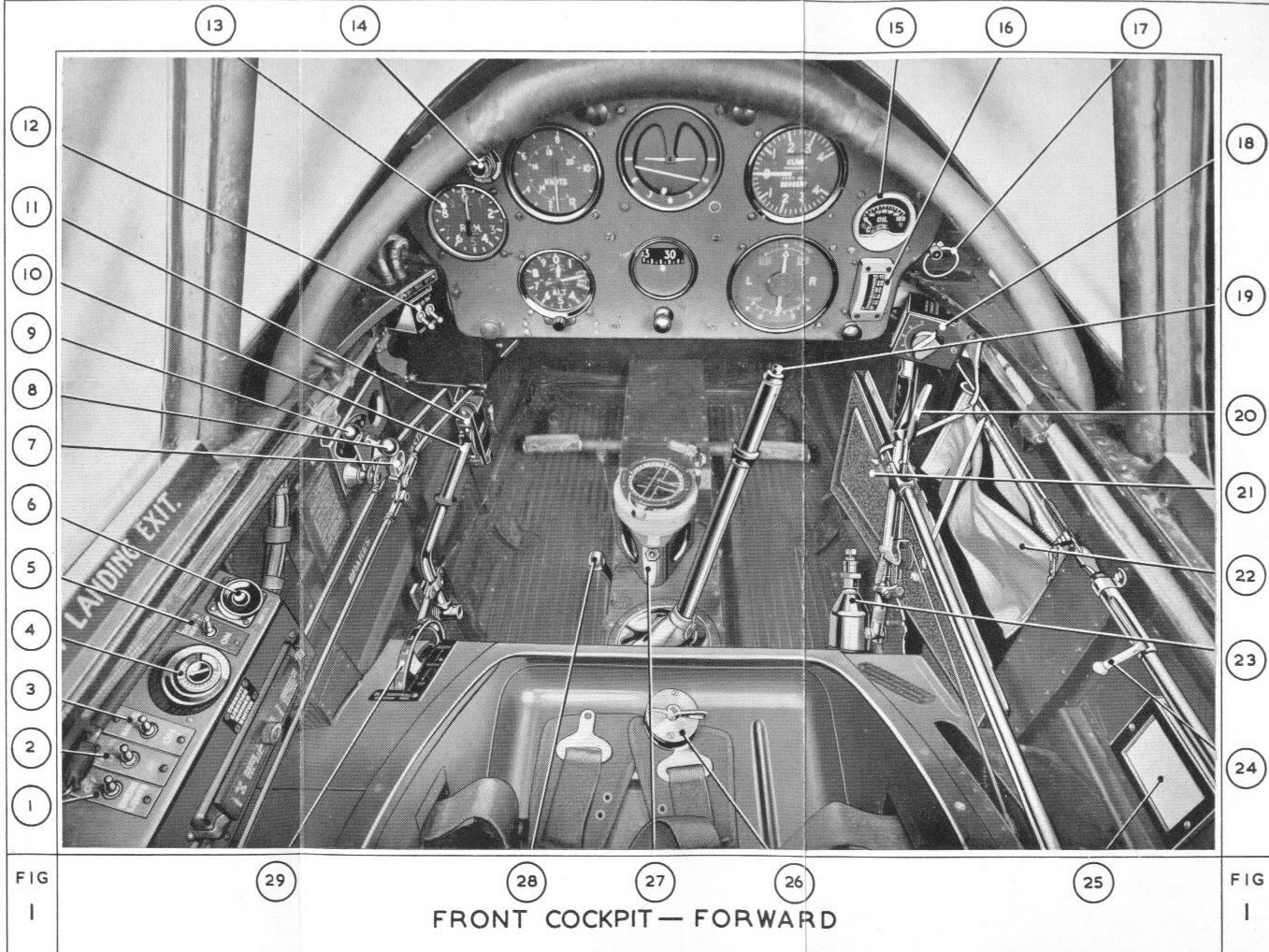

Fig 1. Front cockpit - Forward view

1. Emergency landing lamp.
2. Taxying lamp switch.
3. Navigation lights switch.
4. Cockpit lamps OFF and dimmer switch.
5. Identification light switch.
6. Identification light morsing push button.
7. Throttle & mixture controls friction nut.
8. Mixture control.
9. Throttle control.
10. Brakes control.
11. Master electrical switch.
12. Ignition switches.
13. Tachometer.
14. Generator failure warning light.
15. Oil temperature gauge.
16. Oil pressure gauge.
17. Cartridge starter control.
18. V.H.F radio control.
19. Press-to-transmit button.
20. Flaps Control.
21. Amber screens stowage.
22. Goggles stowage.
23. Hand Fire extinguisher.
24. Air Intake Heat control.
25. Compass deviation card holder.
26. Harness release box.
27. Compass lamp switch.
28. Fuel cock control.
29. Elevator trimming wheel.

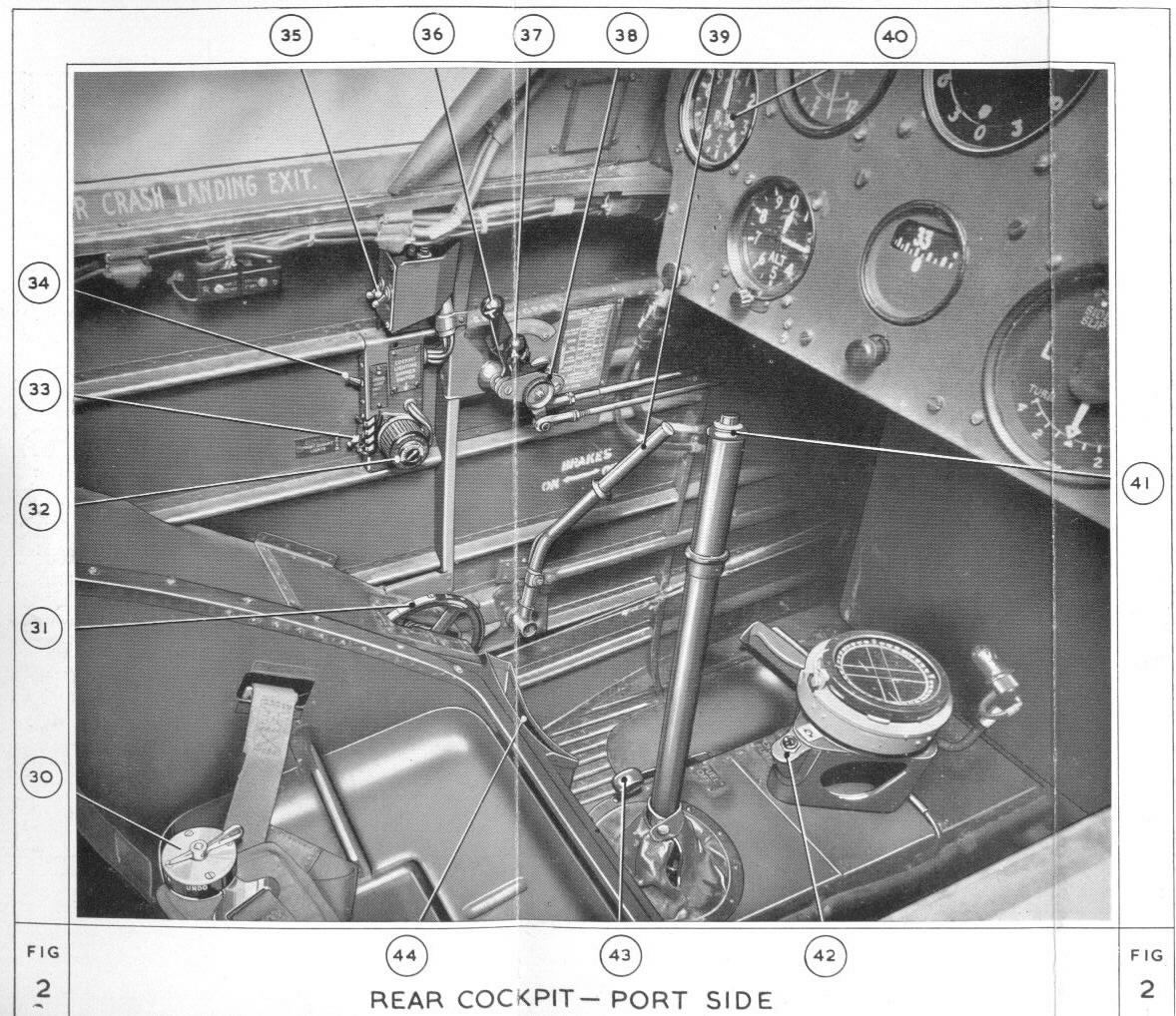

Figure 2. Rear cockpit - port side.

30. Harness release box.
31. Elevator trim wheel.
32. Cockpit lamps OFF and dimmer switch.
33. Front cockpit lamps override switch.
34. Emergency lamp switch.
35. Ignition switches.
36. Throttle control.
37. Mixture control.
38. Throttle control.
39. Brakes control.
40. Tachometer.
41. Press-to-transmit pushbutton.
42. Compass lamp switch.
43. Fuel cock control.
44. Map case.

Figure 3. Rear cockpit - Starboard side.

45. Oil temperature gauge.
46. Oil pressure gauge.
47. Air-intake heat control.
48. Flaps control.
49. V.H.F. change-over switch.
50. V.H.F. radio controller.
51. V.H.F. Muting switch.
52. Compass deviation card holder.
53. Mic-Tel socket.
