The Ju88

 Return to WW2 German Aircraft | Home Page

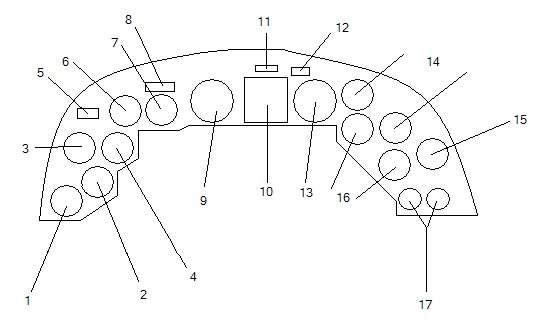

Instrument Layout for the Ju88A-1

1 = Anzeigegerät für Funknavigation = Radio Navigation homing indicator
2 = Fein- und Grob- Höhenmesser = fine and coarse Altimeter
3 = Fahrtmesser = ASI (700Km/h)
4 = Kontakthöhenmesser = Precision Altimeter
5 = Schauzeichen für staurohrheizung = Pitot tube visual indicator
6 = Variometer = vertical speed indicator (rate of climb)
7 = Elektrischer Wendezeiger = Electrical Turn and bank
8 = Kurszeiger = Directional indicatior
9 = Horizont = Artificial Horizion
10 = Kurskreiger = Directional Gyro
11 = deviations- und Betriebs- datentafel-schieber = Unknown
12 = Schauzeichen für kurssteuerung = Autopilot controls
13 = Führertochterkompass = Repeater Compass
14 = Ladedruckmesser = Boost Gauge (2 needed)
15 = vierfachdruckmesser für Kraftstoff und schmierstoff = fuel and lubricant pressure gauge
16 = Ferndrehzahlmesser = RPM Guage (2 needed)
17 = Temperaturanzeiger = Engine Temperature gauges (2 needed)

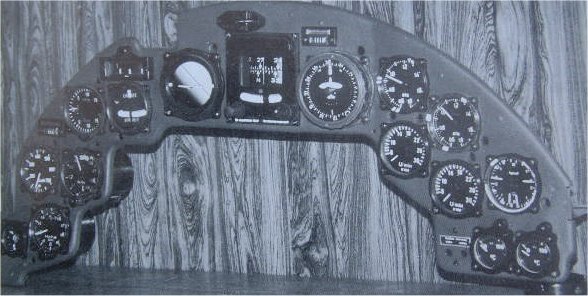

Ju88A-1 Instrument Panel

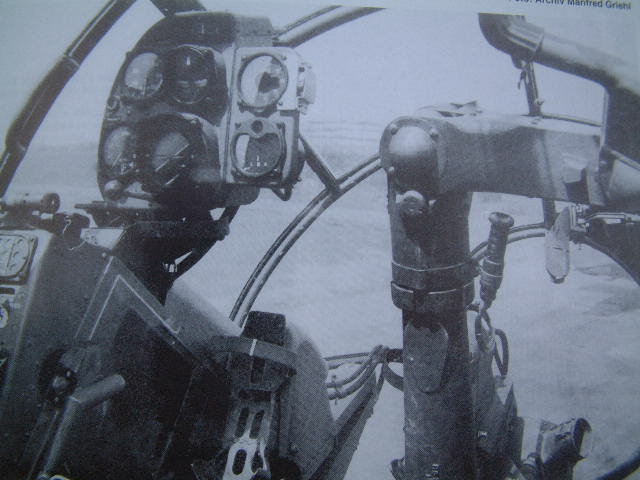

Pilots seating area from a Ju88B-0

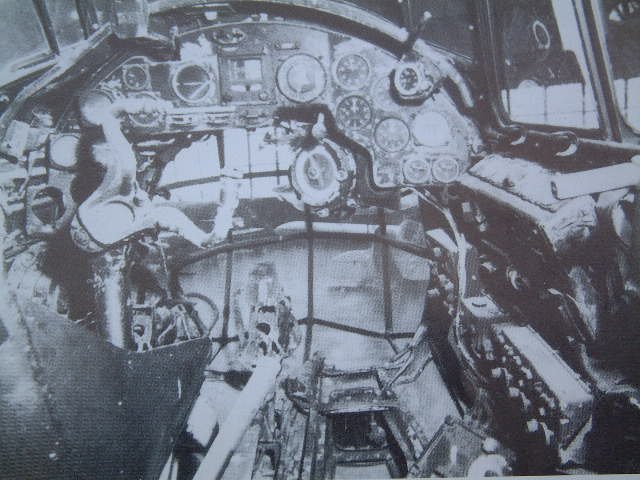

Cockpit View of a Ju88D-1

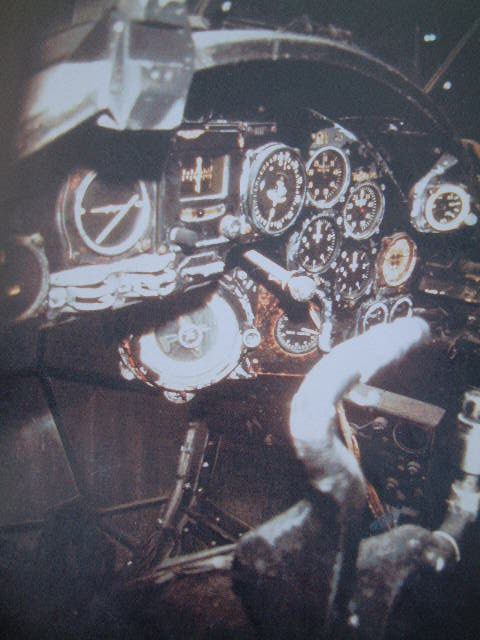

Colour photo of the cockpit of a Ju88D-1 in the USAF museum in Dayton, USA

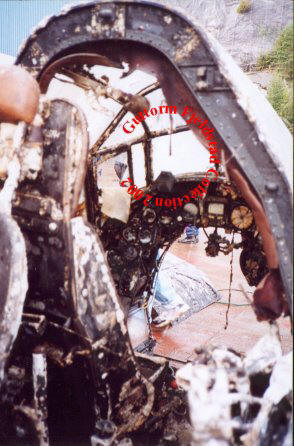

Ju88 Recovered from a lake in norway.

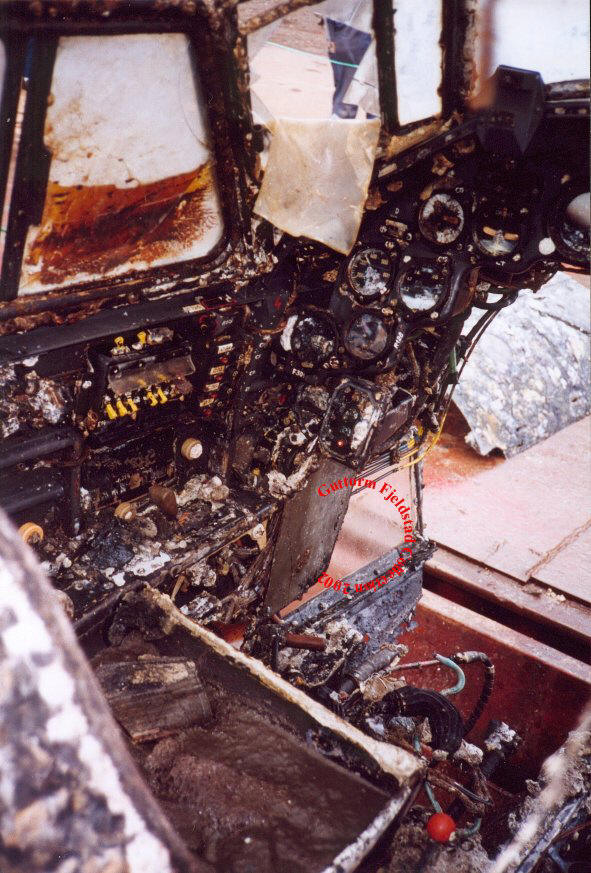

Ju88 Recovered from a lake in norway.
